How to Select the Right Doctor Blade for Gravure and Flexographic Printing
How to Select the Right Doctor Blade for Gravure and Flexographic Printing

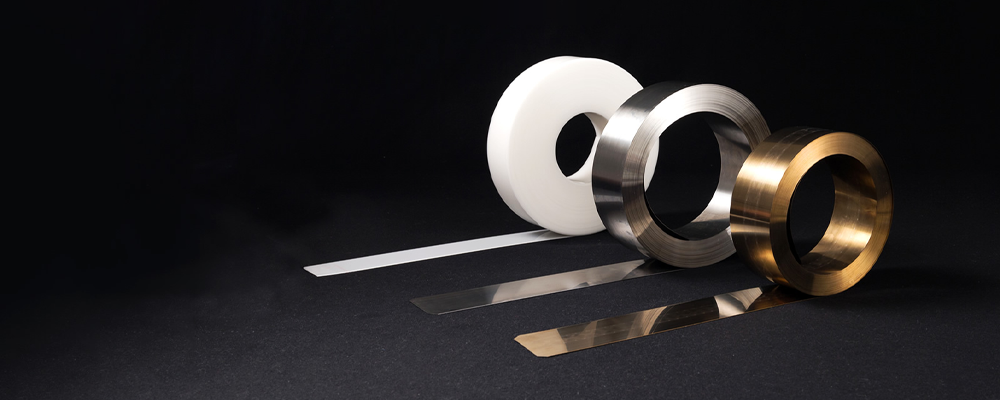

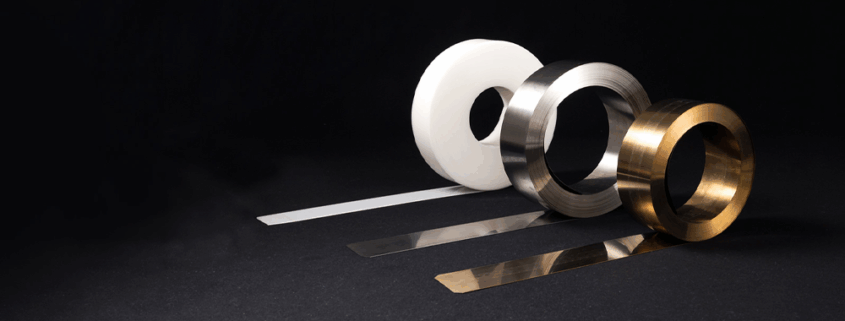

Choosing the right doctor blade is one of the most important decisions in gravure and flexographic printing. The blade you select directly impacts print quality, press efficiency, and overall operating costs. At Fuji Shoko, we provide a complete lineup of blades to meet every printing requirement—from cost-sensitive short runs to high-speed, high-quality gravure applications.
Below are the key factors to consider when selecting the best doctor blades for your press.
Regular Doctor Blades (Steel, Equivalent to SK-4, approximately ~580 HV Hardness)
Steel doctor blades are a reliable choice for printers who need a cost-effective doctor blade without overinvesting in higher hardness options.
- Best for small-lot production
- Suitable for low printing speeds
- Ideal when cost takes priority over print quality
- Practical when cylinder hardness is unknown, or when using borrowed or secondhand cylinders
Coated Doctor Blades (800–1000 HV Hardness)
The coated doctor blades are a suitable option for achieving durability and precision in flexographic and gravure printing for a larger production.
- Suited for medium- to large-lot production
- Stable at high printing speeds
- Recommended when high print quality is required
- Best when cylinder hardness is consistent (900 HV or higher recommended)
QROWT Special Alloy Blades (Approximately 600 HV Hardness)
QROWT Special Alloy Blades are an excellent solution for specialty jobs requiring abrasion resistance and consistent print performance.
- Specifically designed for metallic inks (gold, silver, pearlescent)
- Built to withstand abrasive pigments
- Ensures precise ink metering even under tough conditions
Blade Dimensions and Edge Types
Selecting the right doctor blade involves more than just choosing the material – it also requires careful consideration of blade dimensions and edge type, which play a vital role in achieving consistent print quality and extending blade life.
- Thinner tips improve ink release and reduce hazing or ink flooding
- Thicker tips provide more stability in long runs by suppressing ink release
- Edge profiles (bevel, lamella, round) can be customized for startup performance, durability, and cylinder protection
Choosing the Right Coating to Achieve the Best Quality
Coatings of 700 HV and above are recommended when:
- Cylinder hardness is low, or unknown
- Working with short-run jobs that require easier break-in
- A regular steel blade cannot achieve the desired quality, but a hard ceramic blade would be too aggressive
Coated doctor blades help strike a balance between performance and press protection.
K Ceramic Doctor HQ Series – For Demanding Applications
For the most demanding gravure and flexible packaging applications, Fuji Shoko’s K Ceramic Doctor HQ series are your ultimate solution:
- Hardness range: 850–1000 HV (fully customizable)
- Coating thickness: 5 μm to 20 μm
- Proven success in gravure printing plants worldwide
- Flexible made-to-order options tailored to press requirements
While regular and coated doctor blades are a cost-efficient choice depending on the job, the reality is that high-speed gravure and flexible packaging printers increasingly require both durability and precision.
This is why our ceramic coated doctor blade is guaranteed as the most reliable choice. With its customizable hardness, superior longevity, and proven global track record, it represents the perfect balance of quality, efficiency, and cost savings for your printing operation.
Contact Fuji Shoko today to learn how the K Ceramic Doctor HQ can transform your printing results.
